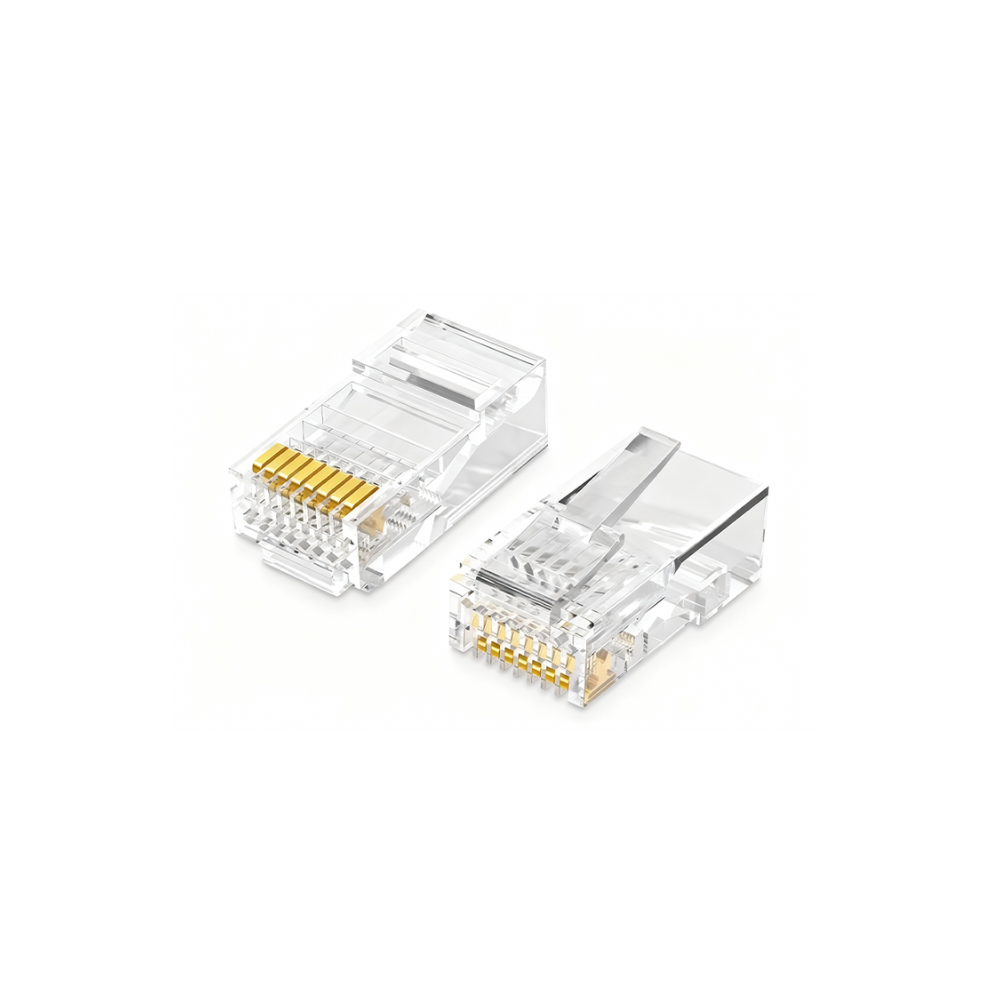

Finosel, Copper CAT6, RJ45 UTP Connector, Crystal Clear , 8 Pins Gold Plating thickness 30u (RJ45C6-02SUTP ) - 100pcs/pack
Finosel® CAT6A RJ45 UTP Connector features a crystal-clear housing, copper contacts, and 30µ gold-plated 8-pin design for reliable high-speed network performance.
Standards
✓ ANSI/TIA-568.2-D
✓ ISO/IEC 11801
✓ RoHS Compliant
Applications
✓ CAT6/CAT6A Cable Termination
✓ Patch Cord Assembly
✓ IP Camera & PoE Connectivity
✓ High-Speed LAN Networking
Features & Benefits
✓ 30µm Gold-Plated Contacts for Reliable Signal Transmission
✓ Compatible with 23–26 AWG Solid and Stranded Conductors
✓ Crystal-Clear Housing for Easy Wire Alignment and Termination
✓ Copper Alloy Shielding for Enhanced EMI Protection
✓ Standard 8P8C Design for High-Performance CAT6A Networks
| Physical Characteristics | |
|---|---|
| Housing | Polycarbonate, UL94V-0 |
| Colors | Crystal Clear |
| Contact Blade | Copper Alloy |
| Conductor | Stranded & Solid Wire, 23 - 26 AWG |
| Electrical Specifications | |
|---|---|
| UL Applications | 250 Volts AC Max., at 2 AMPS |
| Dielectric with Standing Voltage | 500 Volts AC |
| Insulation Resistance | 100 100m Ω |
| Termination | Resistance 20m Max after Environmental Testing |
| Mechanical Specifications | |
|---|---|
| Cable-To-Plug Tensile Strength | 20 Pound Min. |
| Durability | 200 Mating Cycles |
